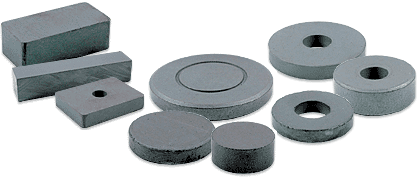

Surplus Ceramic Magnets

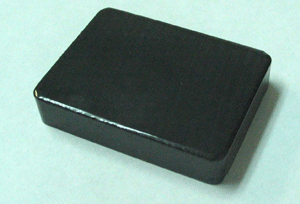

Ceramic Block Magnets

Part No.
Dimensions in Inches
Length
Width
Thickness
Magnetized Direction
CBSA .2 x .275 x .75
0.275
0.2
0.75
Width
CBSA .23 x .5 x.175
0.5
0.23
0.175
Width
CBSA .25 x .375 x .75
0.75
0.375
0.25
Thickness
CBSA .341 x 1.25 x 1.75
1.75
1.25
0.341
Thickness
CBSA .343 x 1.25 x 1.625
1.625
1.25
0.343
Thickness
CBSA .395 x .855 x .85
0.855
0.85
0.395
Thickness
CBSA .435 x .79 x 2.5
2.5
0.79
0.435
Thickness
CBSA .5 x 2 x 1.25
2
1.25
0.5
Thickness
CBSA .51 x .66 x 2.5
2.5
0.66
0.51
Thickness
CBSA .625 x .8125 x 1.25
1.25
0.8125
0.625
Thickness
CBSA 1 x 5 x 10
10
5
1
Thickness
CB11434
1.69
1.25
0.34

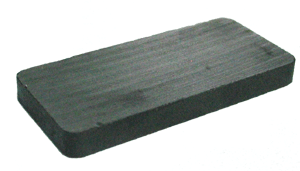

CB60.188
1.875
0.875
0.188

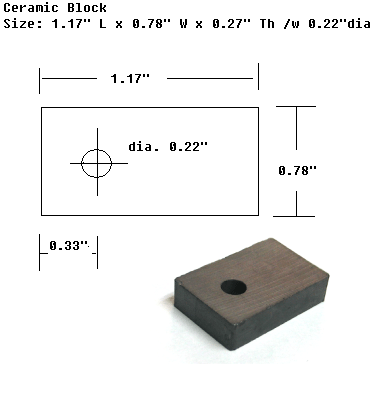

CB-1188H
1.18
0.8
0.27
with 0.22" dia Hole

Ceramic Disc Magnets

Part No.
Dimensions in Inches
Diameter
Thickness
CDSA .314 x .157
0.314
0.157
CDSA .314 x .314
0.314
0.314
CDSA .393 x .157
0.393
0.157
CDSA .393 x .196
0.393
0.196
CDSA .393 x .236
0.393
0.236
CDSA .393 x .275
0.393
0.275
CDSA .393 x .385
0.393
0.385
CD-4623
0.46
0.23
CDSA .472 x .118
0.472
0.118
CDSA .472 x .236
0.472
0.236
CDSA .50 x .100
0.5
1
CDSA .50 x .370
0.5
0.37
CDSA .562 x .078
0.562
0.078
CDSA .590 x .078
0.59
0.078
CDSA .590 x .118
0.59
0.118
CDSA .590 x .314
0.59
0.314
CDSA .708 x .118
0.708
0.118
CDSA .708 x .157
0.708
0.157
CDSA .708 x .196
0.708
0.196
CDSA .708 x .250
0.708
0.25
CDSA .775 x .240
0.775
0.24
CDSA .787 x .118
0.787
0.118
CDSA .787 x .157
0.787
0.157
CDSA .787 x .196
0.787
0.196
CDSA .787 x .393
0.787
0.393
CDSA .870 x .132
0.870
0.132
CDSA .90 x .32
0.9
0.32
CDSA .984 x .196
0.984
0.196
CDSA .984 x .157
0.984
0.157
CDSA 1.06 x .275
1.06
0.275
CDSA 1.10 x .196
1.1
0.196
CDSA 1.10 x .236
1.1
0.236
CDSA 1.122 x .157
1.122
0.157
CDSA 1.122 x .393
1.122
0.393
CDSA 1.14 x .393
1.14
0.393
CDSA 1.181 x .118
1.181
0.118
CDSA 1.181 x .157
1.181
0.157
CDSA 1.181 x .185
1.181
0.185
CDSA 1.181 x .196
1.181
0.196
CDSA 1.181 x .232
1.181
0.232
CDSA 1.181 x .307
1.181
0.307
CDSA 1.181 x .393
1.181
0.393
C8D3415
1.34
0.6
CDSA 1.5 x .187MP
1.5
0.187
CDSA 1.5 x .50
1.5
0.5

Ceramic Ring Magnet

Part No.
Dimensions in Inches
Outer Diameter
Inner Diameter
Thickness
CRSA .629 x .354 x .125
0.629
0.354
0.125
CRSA .687 x .285 x .195
0.687
0.285
0.195
CRSA 1.5 x .86 x .37
1.5
0.86
0.37
CRSA 1.625 x .375 x .437
1.625
0.375
0.437
CRSA 2.4375 x 1.125 x .2
2.4375
1.125
0.2
CRSA 3.376 x 1.28 x .52
3.376
1.28
0.52
CRSA 5.25 x 1.91 x .55
5.25
1.91
0.55
